Maximize efficiency, safety, and ROI with your Trumpf laser system. This comprehensive guide combines step-by-step setup instructions, advanced parameter optimization, and data-backed maintenance strategies trusted by aerospace, automotive, and medical manufacturing leaders. Whether you’re a beginner or looking to optimize your current workflow, the following practical steps will help you fully harness the capabilities of your Trumpf laser cutter.

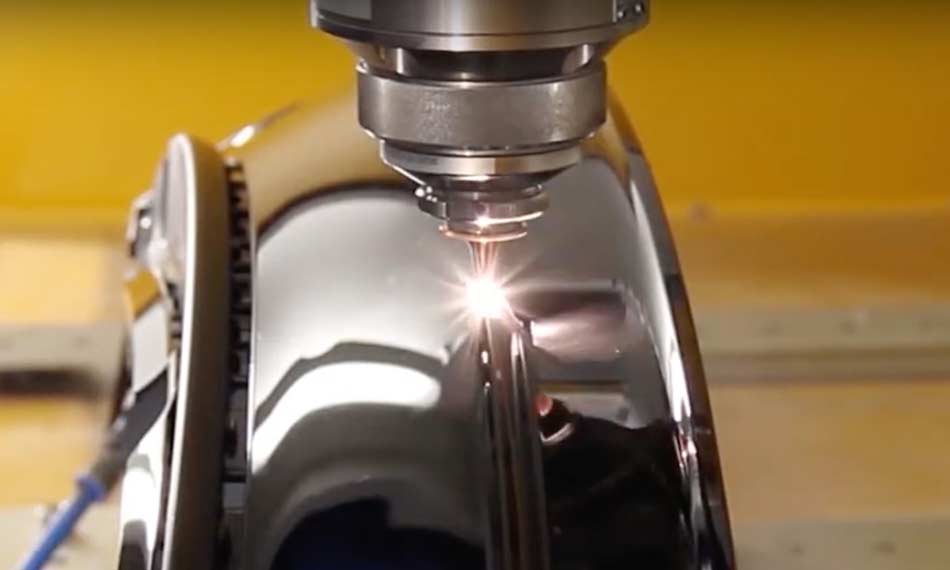

Product Application-1

Trumpf Laser Setup: Safety & Configuration Best Practices

Preparing Your Workspace

Clean & Ventilated Environment

Remove debris and ensure airflow ≥ 120 m³/h (70 CFM) to prevent smoke accumulation.
Use laser-rated PPE: ANSI Z87.1 safety glasses, heat-resistant gloves, and noise-canceling earmuffs.

Material Inspection

Verify sheets (stainless steel, aluminum, brass) are dry, flat, and free of oil. Contaminated surfaces reduce beam quality by up to 30%.

Power-On Sequence & Gas Calibration

System Activation

Turn on the main power and wait 10–15 minutes for the chiller to stabilize at 18–22°C (64–72°F).
Check assist gas pressures:
Gas Type Pressure Range
Oxygen 15–20 bar (220–290 psi)
Nitrogen 12–18 bar (175–260 psi)

Exhaust & Dust Management

Gas Type	Pressure Range
Oxygen	15–20 bar (220–290 psi)
Nitrogen	12–18 bar (175–260 psi)

Start the exhaust fan and confirm dust extraction filters are at ≤ 80% capacity.

Trumpf Laser Control Panel Mastery

Touchscreen Navigation

HOME Button: Resets X/Y/Z axes to reference zero (critical for multi-job workflows).
Jog Wheel Precision: Adjust cutting head position in 0.01mm increments for complex geometries.
Program Loader: Import NC files via USB, network, or Trumpf’s TruTops Boost nesting software.

Status Light Diagnostics

LED Color	Meaning	Action
Green	System Ready	Proceed with job setup
Yellow	Low Gas Pressure	Check lines for leaks or valve blockages
Red	Fault Detected	Press Emergency Stop and review error code (e.g., E452 = Lens Overheat)

Workpiece Alignment & Nesting Optimization

Clamping & Origin Setup

Use pneumatic clamps at 6–8 bar (85–115 psi) to secure warped sheets.
Set the origin point (X0/Y0) 10mm from the sheet edge to avoid nozzle collisions.

Trumpf TruTops Nesting Tips

Select material-specific profiles (e.g., "1mm Mild Steel" auto-sets 3kW power, O2 assist).
Enable Common Line Cutting to reduce scrap by 12–18%.
Simulate toolpaths to detect collisions—critical for intricate aerospace components.

1.LASER-2

Cutting Parameters & Beam Quality Optimization

Material-Specific Settings

Material	Thickness	Power (kW)	Gas Type	Nozzle Size
Stainless Steel	3mm	2.5	N2	1.2"
Aluminum	2mm	3.0	O2	1.0"
Brass	4mm	4.2	O2	1.4"

Troubleshooting Edge Quality

Dross Formation: Increase gas pressure by 10% or reduce feed rate by 15%.
Discoloration: Clean lenses and verify focus position (±0.2mm tolerance).

Trumpf Laser Maintenance & Cost Control

Daily/Weekly Tasks

Optics Care: Clean lenses every 8 hours with lint-free wipes and 99% isopropyl alcohol.
Mechanical Lubrication: Apply Kluber NBU 15 grease to X/Y rails (2g per linear meter).

Operating Cost Analysis

Cost Factor	Price Range	Optimization Tip
Gas Consumption	<math xmlns="http://www.w3.org/1998/Math/MathML">8–</math>8–16/hour	Use Gas Saver Mode during piercing
Lens Replacement	<math xmlns="http://www.w3.org/1998/Math/MathML">220–</math>220–450	Extend lifespan by avoiding copper/brass reflectivity
Energy Usage	<math xmlns="http://www.w3.org/1998/Math/MathML">5–</math>5–8/hour	Activate Eco Mode during standby

Trumpf Laser vs. Competitors: Key Advantages

Speed: 20% faster than Bystronic’s ByStar Fiber at 6mm stainless steel (Source: Industrial Laser Quarterly 2023).
Software: TruTops Boost outperforms Lantek in nested part density by 15–22%.
Precision: ±0.05mm tolerance vs. Mazak’s ±0.08mm for aerospace templates.

Industry Applications & ROI Case Studies

Automotive Manufacturing

Task: Cutting 2mm stainless steel exhaust flanges.
Parameters: 3.2kW power, O2 assist, 45m/min feed rate.
ROI: Reduced scrap costs by $1,200/month using TruTops Common Line Cutting.

Medical Device Fabrication

Task: Micro-cutting titanium bone screws (0.5mm thickness).
Parameters: Pulsed mode, 0.8mm nozzle, 98% argon purity.
Outcome: Achieved 99.7% defect-free parts with Trumpf’s Dynamic Line stabilization.

all-smtbanner-3

Frequently Asked Questions (FAQ)

Q: How much does a Trumpf laser cutter cost?

A: Entry-level models start at <math xmlns="http://www.w3.org/1998/Math/MathML">350,000,whilehigh−power12kWsystemsexceed</math>350,000,whilehigh−power12kWsystemsexceed1.2M.

Q: Can Trumpf lasers cut copper?

A: Yes, but require infrared lasers and anti-reflective coatings to prevent beam deflection.

By following these steps, you’ll maximize the cutting accuracy, equipment lifespan, and productivity of your Trumpf laser system. Proactive maintenance, timely laser repair, and ongoing operator training will minimize downtime while ensuring long-term reliability and superior cutting results.
