SIPLACE FEEDER PROCUREMENT DECISION GUIDE

SIPLACE 8mm Feeder Guide: OEM vs Compatible vs Refurbished

An engineering-focused comparison of SIPLACE 8mm feeder options (X-Feeder & S-Feeder series) for SMT lines. Evaluate real-world pick error rates, micro-component placement stability, and long-term TCO to optimize your placement yield.

⚙️ SIPLACE System Compatible

📉 Pick Error Rate ≤0.03%

🏭 Factory-Direct SMT Supply

🔬 Laboratory Certified

Get Feeder Specifications

Request data sheets, batch wholesale pricing, or compatibility support.

Understanding the SIPLACE 8mm Feeder Architecture

The SIPLACE 8mm feeder is the backbone of high-speed SMT assembly, specifically engineered for ASM SIPLACE pick-and-place machines (such as the X-Series, SX-Series, and E-Series). It delivers precise, continuous indexing of 8mm carrier tapes carrying micro-components like 0201, 0402, and 0603 chip resistors and capacitors.

In high-density SMT manufacturing, selecting the right tier of 8mm feeder directly dictates your key performance indicators:

Pick Error Rate & Rejection Control: Minimizing component throwing and costly nozzle machine jams.
Component Size Capability: Ensuring accurate pitch stepping for ultra-fine-pitch 01005 and 0201 packages.
Software Synchronization: Flawless RFID and barcode communication with the SIPLACE line controller.

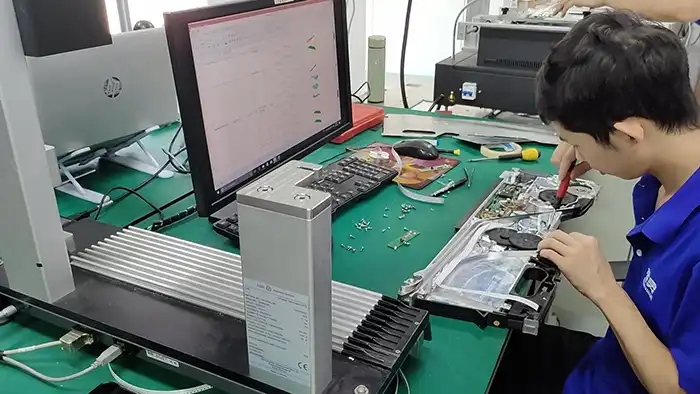

SIPLACE 8mm Feeder Mechanical Architecture and Tape Feed System

SIPLACE 8mm Feeder Technical Specifications Comparison

Technical Metric	Original OEM Feeder	Premium Compatible Feeder	Refurbished OEM Feeder
Core Definition	Factory-fresh original ASM SIPLACE hardware	Precision engineered third-party alternatives	Pre-owned OEM units, fully rebuilt and calibrated
Average Pick Error Rate	≤ 0.03% (Industry benchmark)	0.05% – 0.12% (Premium grade)	≤ 0.05% (With fresh wear-parts)
Component Capability	01005, 0201, 0402, 0603+	Optimal for 0402, 0603, 1206+	0201, 0402, 0603+ (Post-calibration)
SIPLACE ID / RFID Sync	100% Native Integration	Emulated Smart Chip / Optional	100% Original Chip Retained
Investment Cost	Premium / High CapEx	Cost-Efficient (Save up to 50-60%)	Balanced (Balanced CapEx & OEM Quality)
Best Production Role	Ultra-high-density semiconductor & automotive SMT	High-mix low-volume & consumer electronics	Rapid line expansion & high-speed budget optimization

Comparing prices for large batch orders or specific SIPLACE machine series?

Consult Our SMT Specialists

Engineering Analysis: Sourcing the Right SIPLACE 8mm Feeder

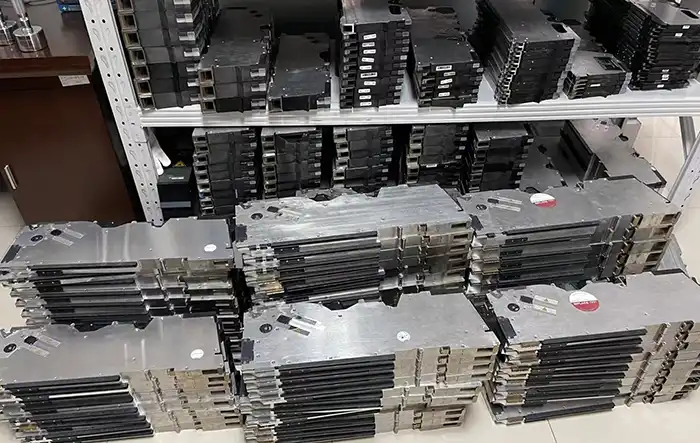

Original OEM SIPLACE 8mm Feeders

Original OEM feeders offer unmatched mechanical tolerances and brushless motor reliability. They are indispensable for advanced SMT lines running 01005 components at maximum CPH. The downside remains extended factory lead times and premium procurement budgets.

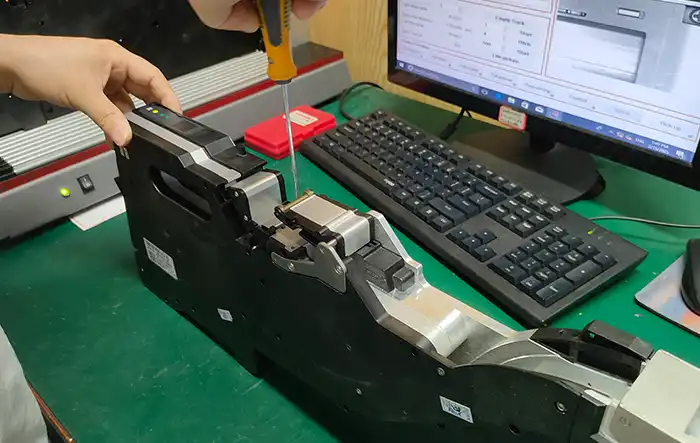

Premium Compatible 8mm Feeders

High-quality compatible SIPLACE 8mm feeders serve as an excellent cost-containment strategy for standard consumer electronics assembly. Manufactured with premium tungsten alloy shutters and precise indexing gears, they closely mirror OEM performance profiles at a fraction of the cost.

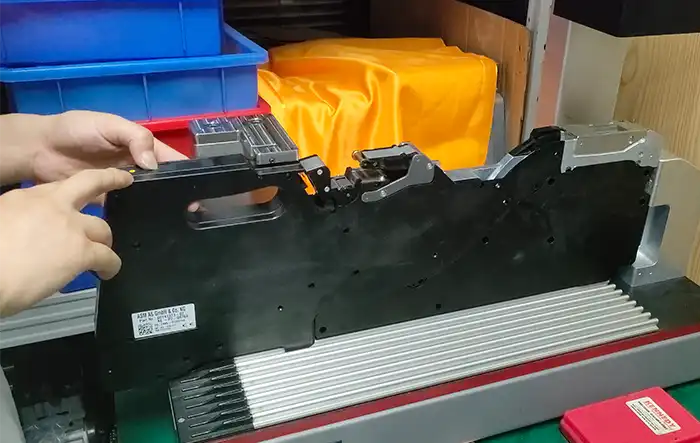

Factory Refurbished OEM SIPLACE 8mm Feeder

Factory-Refurbished OEM Feeders

Refurbished original SIPLACE feeders represent the sweet spot for many contract manufacturers (EMS). Every unit undergoes rigorous teardowns where critical wear parts are replaced, followed by strict calibration on standard SIPLACE feeder testers.

💡 Technical Sourcing Insight for SMT Procurement Teams

When evaluating compatible SIPLACE 8mm feeders, do not just look at the price tag. Verify that the supplier uses high-resolution brushless step-motors and high-wear-resistance material for the shutter mechanism. Poor-quality alternatives cause subtle tape-splicing alignment shifts, leading to micro-stoppages and a drastic drop in your line’s overall OEE (Overall Equipment Effectiveness).

Industrial Calibration & Quality Assurance Matrix

Full Matrix Feeder Testing: Every SIPLACE 8mm unit is checked for indexing precision and data-matrix readability.
Component Simulation Runs: 100% pre-shipment dry runs simulating high-speed 0402/0201 pick cycles.
Comprehensive Parts Inventory: Instant access to SIPLACE compatible or OEM wear items (shutters, springs, levers).
Minimized Production Downtime: Buffer stock availability ensures fast global shipping to EMS facilities.

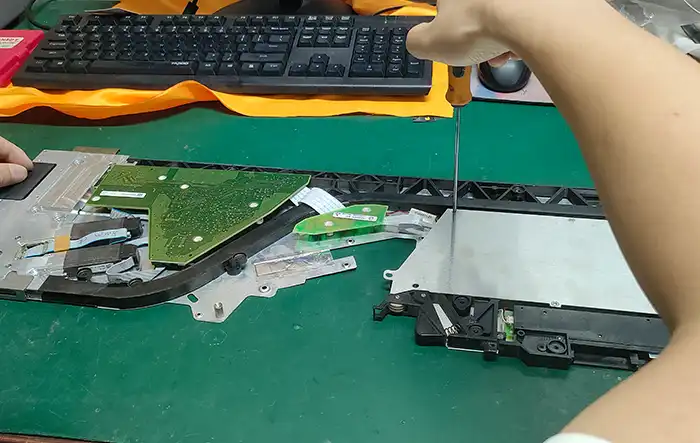

SIPLACE Feeder Calibration Laboratory and Precision Testing Process

Why Proactive Feeder Buffering is Critical for SMT OEE

Waiting for a feeder to fail before purchasing a replacement is a high-risk strategy that compromises your line's Overall Equipment Effectiveness (OEE). Maintaining a strategic buffer stock of SIPLACE 8mm feeders ensures seamless production continuity.

Zero-Downtime Swapping

Feeder wear or sudden micro-stoppages shouldn't halt your entire SMT line. With a dedicated buffer inventory, operators can hot-swap a faulty feeder in under 30 seconds, keeping the placement head running while the issue is diagnosed.

Offline Calibration & Maintenance

When a feeder exceeds acceptable pick error rates (>0.03%), it requires maintenance. Having safety stock allows your technical team to calibrate and test problematic units offline without sacrificing active assembly throughput.

Accelerated Batch Changeovers

For high-mix low-volume (HMLV) manufacturing, buffer feeders allow operators to pre-load and prepare carrier tapes for the next product run well in advance, drastically reducing line setup and component changeover times.

Secure Your Production Line Continuity

Don't let a minor component feeding error disrupt your delivery schedule. Contact our supply specialists to calculate the optimal feeder buffer ratio for your specific SIPLACE module configuration.

Establish Your Feeder Safety Stock Today

SIPLACE 8mm Feeder: Frequently Asked Questions

Will third-party compatible SIPLACE 8mm feeders throw error codes on my machine?

Premium compatible SIPLACE 8mm feeders are integrated with advanced emulated chips that sync seamlessly with the machine’s feeder interface software, preventing software alarms or barcode recognition errors during placement.

What is the typical pick error rate for a refurbished SIPLACE 8mm feeder?

If refurbished using high-standard procedures and calibrated on a dedicated tester, a refurbished OEM SIPLACE feeder can achieve a pick error rate of less than 0.05%, which perfectly meets high-volume production requirements.

Can I use a compatible 8mm feeder for ultra-small 01005 components?

For 01005 and hyper-fine pitch applications, we strictly recommend using original OEM SIPLACE X-Feeders. While premium compatible units handle 0201 and 0402 beautifully, 01005 demands the absolute pinnacle of original mechanical micro-precision.

Are original OEM feeders and third-party compatible 8mm feeders interchangeable on the same SIPLACE trolley?

Yes. Premium compatible 8mm feeders are engineered with identical mechanical dimensions, slot alignments, and interface gold-fingers. They can be mixed and loaded onto the same feeder trolley alongside original OEM units without physical interference or performance imbalances.

How do you ensure the long-term availability of wear parts like shutters and springs?

As an industrial SMT specialist, we maintain a dedicated buffer stock of structural components and internal wear parts (including tungsten alloy shutters, advancement springs, and tape guide levers). These are available for immediate global shipping to prevent production stoppages.

Can these 8mm feeders run continuously on old SIPLACE machines as well as the latest X/SX series?

Compatibility depends heavily on the specific software configuration and interface type of your machines. While our standard 8mm units are calibrated for modern high-speed X, SX, and E-series platforms, we can supply emulated chips tailored for older vintage architectures upon request. Please consult our technical team with your machine serial numbers before placing a bulk order.
