ASM 2x8mm Feeder Selection Guide: Engineering Comparison & CPK

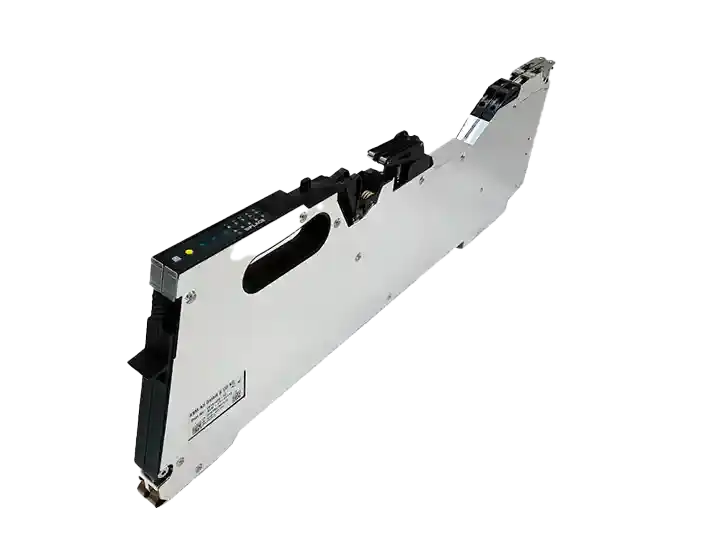

What is an ASM 2x8mm Feeder?

An ASM 2x8mm feeder is a dual-lane electronic component tape feeder engineered for ASM SIPLACE surface mount technology (SMT) systems. It precisely advances 8mm carrier tapes with 2mm or 4mm pocket pitches, ensuring ultra-high accuracy during high-speed pick-and-place assembly cycles.

Technical Comparison: Performance & Risk Matrix

Feeder Condition Category	Mechanical Accuracy Standard	Best-Fit SMT Applications	Mispick Risk & Factory Warranty
New OEM-Compatible	100% Match to OEM standards (≤0.05mm alignment deviation)	Continuous high-volume production, ultra-fine pitch components (0201/01005).	Lowest Risk. Typically backed by a full factory replacement warranty.
Original Used (Tested)	Variable depending on hours run; requires CPK validation	Short-run productions, high-mix low-volume (HMLV) lines, or immediate backup buffer stock.	Medium Risk. Relies entirely on the supplier's internal testing rig quality.
Refurbished Precision	Restored to near-OEM specification via parts replacement	Cost-sensitive tier-1 automotive or consumer electronics contract manufacturing.	Controlled Risk. Excellent ROI if calibrated using specialized optical calibration jigs.

Engineering Evaluation Factors

1. Placement Stability (CPK Value)

For fine-pitch components, structural feeder wear directly triggers high mispick rates. High-speed SMT lines require consistent tape tensioning to maintain a target CPK ≥ 1.33.

2. Total Cost of Ownership (TCO)

While used original feeders offer an attractive entry price, unexpected component attrition and nozzle wear caused by aging tape-advance springs can negate initial capital expenditure savings.

3. Component Attrition Control

Advanced OEM-compatible feeders feature updated mechanical gear ratios that prevent sudden tape jerking, protecting fragile passive components from flipping inside the pocket.

Manufacturer’s Direct Insight on SMT Yield Rate

In industrial SMT manufacturing, over 65% of component pickup errors are directly traceable to poorly calibrated or mechanically worn feeders rather than placement head software bugs. When sourcing ASM 2x8mm feeders, establishing a rigorous incoming quality control (IQC) protocol using dedicated feeder calibration jigs is vital for maintaining high operational yield.

Quantifiable SMT Selection Framework for Engineers

To maintain optimal line utilization, procurement should align the ASM 2x8mm feeder condition with the specific tracking metrics of your SMT line:

Target Yield: ≥99.95%

Deploy New OEM-Compatible feeders exclusively. Crucial for ultra-fine-pitch component tracking (0201/01005) to eliminate nozzle sensor false alarms.

Target Cost Reduction: 40%+

Opt for Refurbished Precision units. Ensure the supplier provides a verifiable 3-axis optical calibration report and CPK data chart.

NPI & Prototype Flexibility

Utilize Tested Original Used feeders. Perfect for high-mix low-volume lines where frequent tape pitch adjustment (2mm to 4mm) causes rapid mechanical wear.

Feeder Optimization Across Demanding SMT Environments

Tier-1 Automotive EMS

Zero-Defect Traceability

Automotive PCBA requires strict compliance with IATF 16949. Feeders must have flawless RFID/barcode communication with the ASM SIPLACE software to prevent component mismatch during reel changes.

High-Density LED Display

Ultra-Fine Pitch Alignment

Mini-LED and fine-pitch display assembly demands continuous 2mm tape advancement without vibration. Micro-slippage within standard used feeders will immediately lower the placement accuracy of 0404/0606 LEDs.

Consumer Medical Electronics

24/7 Continuous Duty Cycle

Mass production lines require feeders with hardened steel tape guides to resist the abrasive wear of fiberglass and plastic carrier tapes during millions of structural cycles.

Pre-Procurement Checklist for ASM 2x8mm Feeders

Before finalizing your bulk ASM feeder order, ensure your manufacturer validates the following parameters:

Mechanical Backlash Check: Indexing gears must exhibit zero perceptible play to avoid X-Y coordinate drift.
Shutter & Cover Blade Tension: Film peeling mechanisms must pull smoothly at an optimal 45-degree angle to prevent tape tearing.
Gold-Plated Interface Pins: Electrical contact blocks must be free of oxidation to guarantee uninterrupted power and signal flow to the machine trolley.
Calibration Jig Verification: All refurbished or compatible units must pass an automated optical alignment inspection before crating.

ASM 2x8mm Feeder Technical FAQ

Why do ASM 2x8mm feeders heavily influence SMT placement accuracy?

ASM feeders dictate the precise geometric X-Y coordinates of the component pocket before the vacuum nozzle descends. Any microscopic backlash or mechanical play within the feeder's internal advance gears shifts the pick-up center point, immediately resulting in nozzle wear, component damage, or off-pad placements on the PCB.

Can a refurbished ASM feeder deliver the exact performance of a brand-new OEM unit?

Yes. A refurbished ASM feeder can closely match OEM performance thresholds, provided that critical fatigue-prone components—such as index springs, tape guide plates, and electronic sensors—are entirely replaced and validated using a certified calibration jig.

What are the primary indicators of a failing ASM SMT feeder?

The most frequent indicators include an abrupt spike in the machine's mispick alert logs, repetitive tape jamming, components flipping vertically inside their embossed pockets, and consistent offset deviations detected during the placement camera's optical vision alignment check.

How does tape pitch configuration alter the function of an ASM 2x8mm feeder?

The ASM 2x8mm feeder supports dual lanes but requires proper mechanical or software indexing adjustments depending on whether the carrier tape utilizes a 2mm pitch (for tiny components like 0201) or a 4mm pitch (standard for 0603/0805 components). Incorrect pitch settings will cause the machine to over-advance or under-advance the component stream.

ASM 2x8mm Feeder Selection Guide: Engineering Insights for SMT Precision
