XBX Medical Endoscope Equipment Host

The medical endoscope host is a highly integrated system, mainly composed of an image processing module, a light source system, a control unit and auxiliary accessories to ensure clear endoscope imaging and stable operation.

1. Image processing system

(1) Image processor (video processing center)

Function: Receive endoscope sensor (CMOS/CCD) signals and perform noise reduction, sharpening, HDR enhancement, and color correction.

Technology: Support 4K/8K resolution, low-latency encoding (such as H.265), and AI real-time analysis (such as lesion marking).

(2) Video output module

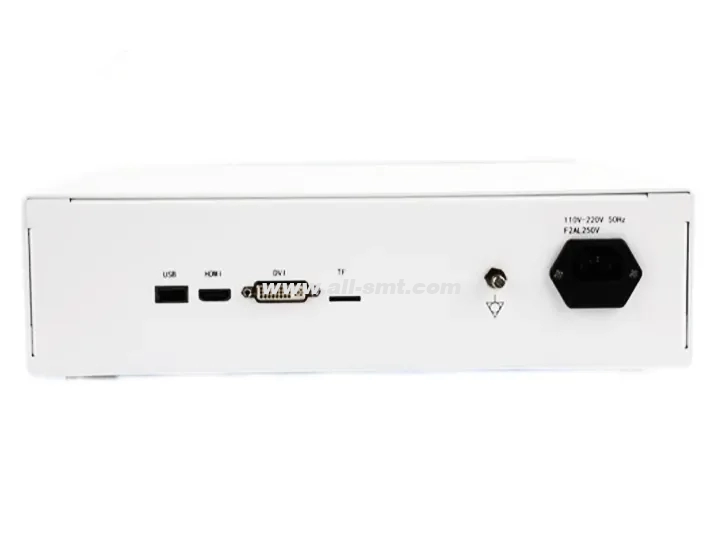

Interface type: HDMI, SDI, DVI, etc., connected to a display or recording device.

Split screen function: Supports multi-screen display (such as white light + fluorescence synchronous contrast).

2. Light source system

(1) Cold light source generator

Light source type:

LED light source: energy-saving, long life (about 30,000 hours), adjustable brightness.

Xenon light source: high brightness (＞100,000 Lux), color temperature close to natural light.

Intelligent control: Automatically adjust the brightness according to the surgical field (such as brightening the bleeding scene).

(2) Fiber optic interface

Light guide connector: transmits the light source to the front end of the endoscope to illuminate the inspection area.

3. Control and interaction unit

(1) Main control panel/touch screen

Function: adjust parameters (brightness, contrast), switch imaging mode (NBI/fluorescence), video control.

Design: physical buttons or touch screen, some support voice commands.

(2) Foot switch (optional)

Purpose: Doctors can operate hands-free during surgery, such as freezing images and switching light source modes.

4. Data storage and management module

(1) Built-in storage

Hard disk/SSD: record 4K surgical videos (usually supports more than 1TB capacity).

Cloud synchronization: some hosts support uploading cases to the cloud.

(2) Data interface

USB/Type-C: export case data.

Network interface: remote consultation or access to the hospital PACS system.

5. Auxiliary expansion accessories

(1) Insufflator interface (for laparoscopy only)

Function: connect to insufflator to automatically adjust intra-abdominal air pressure.

(2) Energy device interface

Compatible with high-frequency electrosurgical knife and ultrasonic scalpel: realize electrocoagulation, cutting and other operations.

(3) 3D/fluorescence module (high-end model)

3D imaging: output stereoscopic images through dual cameras.

Fluorescence imaging: such as ICG fluorescence marking tumor boundaries.

6. Power supply and cooling system

Redundant power supply design: prevent power failure during surgery.

Fan/liquid cooling: ensure long-term working stability.
