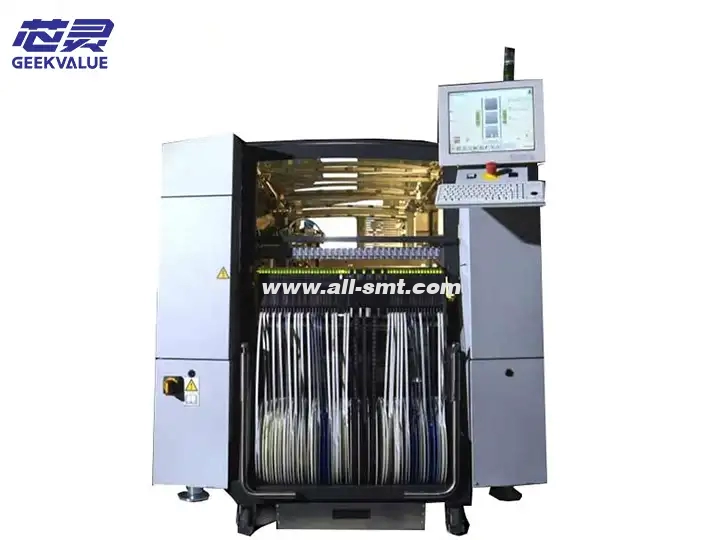

asm siemens smt makina oyika SX1

Nokia SMT makina SX1 ndiye nsanja yotsogola padziko lonse lapansi yopanga makina osakanikirana amagetsi. Nawa mawu oyamba mwatsatanetsatane:

Mawonekedwe a makina

Kukhazikika kwamphamvu: SX1 ndiye njira yokhayo padziko lapansi yomwe imazindikira ma cantilever modularization. Ndi cantilever yapadera yosinthika, mphamvu yopangira imatha kukulitsidwa kapena kuchepetsedwa ngati pakufunika, ndiye kuti, SIPLACE pakufunika kukulitsa. Makasitomala amatha kuwonjezera kapena kuchepetsa magulu a cantilevers ndi mitu yoyika mkati mwa mphindi 30, kukulitsa kapena kusintha kuchuluka kwa mzere wopangira popanda kusintha mawonekedwe a mzere wopangira, kuyankha momasuka pakusintha kopanga, ndikuteteza ndalama zamakasitomala.

Kusinthasintha kwakukulu: Zokhala ndi mitu yosiyanasiyana yoyika, monga SIPLACE SpeedStar, SIPLACE MultiStar ndi SIPLACE TwinStar, yoyenera kuyika zigawo zamitundu ndi kukula kwake. Imatha kugwira zigawo zamitundu yosiyanasiyana monga 0201 (metric) -6x6mm, 01005-50x50mm, 0201-200x125mm, ndi zina zambiri, zomwe zimatha kukwaniritsa zofunikira zoyika mwachangu ngati 0201, komanso zimathanso kuyika zigawo zazikuluzikulu zowoneka bwino.

Olemera mu ntchito zanzeru: Ili ndi ntchito zingapo zanzeru, monga kuzindikiritsa ID ya nozzle ndi kusankha kodalirika kwa nozzle yolondola kuchokera ku chosintha chilichonse chokhala ndi nozzle mpaka 320; kusanthula nthawi zonse kwa mkhalidwe wa nozzle, kuyeretsa basi ndi kutaya ma nozzles owonongeka; kutsimikiza basi olondola sitepe zoikamo kwa 8mm tepi pambuyo Mumakonda aliyense latsopano, ntchito yatsopano kupanga, kusintha wodyetsa kapena zinthu splicing, etc. Komanso amapereka mfiti kwa kusamalira zigawo zosalongosoka, mfundo zofotokoza zatsopano kapena mafunso utali amaika, ndipo akhoza kulowa ndi/kapena kutsimikizira mfundo mwachindunji pa makina kapena kutali kuti kufulumizitsa kupanga poyambira.

Zosintha zaukadaulo

Liwiro loyika: IPC liwiro ndi 29,500cph, SIPLACE benchmark kuyesa liwiro ndi 37,000cph, liwiro lamalingaliro ndi 43,450cph.

Kuyika kolondola: ± 41μm/3σ (mutu woyika wa SpeedStar), kulondola kwa ngodya ndi ± 0.5°/3σ.

Chigawo chamagulu: 0201 (metric) -6x6mm.

Kukula kwa PCB: 50x50mm - max. 850x560mm.

PCB makulidwe: 0.3 - 6.5mm.

Kulemera kwa PCB: max. 3kg pa.

Kuchuluka kwa chakudya: 120 8mm X zodyetsa.

Makulidwe a makina: 1.5x2.4m.

Maonekedwe a mutu woyika

SpeedStar (CP20P2): Kuthamanga kwambiri komanso kuyika kwa zigawo zazing'ono ngati 0201 (metric) molunjika kwambiri.

MultiStar (CPP): Mutu wokhawo woyika padziko lapansi womwe ungasinthe pakufunika pakati pa kusonkhanitsa, kusankha ndi malo, mosakanikirana.

TwinStar (TH): Kuyika mutu wa ntchito zapadera ndikuyika bwino mpaka 22μm @3 (ndi TwinStar).

Ubwino wina

Chizindikiritso chodalirika chazinthu: Makina ojambulira a Digital SIPLACE amatha kuzindikira mwachangu komanso modalirika zigawo zamitundu yonse ndi mitundu. Mothandizidwa ndi chidziwitso cha database ya SIPLACE, makinawa amatha kumaliza kufotokozera kwa zigawo zatsopano m'masekondi pang'ono kudzera pakuphunzitsa kwapaintaneti kapena mwachindunji pamzere wopanga. Laibulale ya zithunzi zosungidwa imathandizira kusanthula zinyalala ndi zinthu zina zokhudzana ndi gawo.

Ndi 3D kuzindikira luso: Pophatikiza zithunzi ziwiri kuchokera ku chigawo chapamwamba kwambiri cha kamera kuti apange chithunzi cha 3D, imatha kuzindikira modalirika nsonga za pini za THT zomwe zawonongeka ndikuyang'ana pa malo ovuta kwambiri, monga kudziwa malo a mapepala, ngati pali zigawo zomwe zikusowa pansi pa chimango chotchinga, komanso ngati malowa ndi olondola.

Kuwongolera kukakamiza koyika bwino: Ndi kuyika kosalumikizana komanso kuwongolera kwathunthu kuyika kwamphamvu kuchokera ku 0.5N mpaka 100N, imatha kuzindikira kuyika kwamitundu yosiyanasiyana kuchokera ku ma LED okhudzidwa kupita ku zolumikizira zolimba.

Njira yolumikizira yosinthika: Imapereka njira imodzi yopatsira njanji imodzi komanso njira zosinthira zapawiri. Mitundu yotumizira imaphatikizapo njira zosasinthika, zofananira, komanso zodziyimira pawokha. Ma board ang'onoang'ono okhala ndi kukula kwa 450mmx265mm amatha kusunthidwa pogwiritsa ntchito njira yabwino yotumizira ma track awiri. Pogwiritsa ntchito AMS Smart Transport Module, matabwa akuluakulu okhala ndi kukula kwa 1,525mmx560mm amathanso kukonzedwa.

Mwachidule, makina a Siemens SMT SX1 amachita bwino mumagulu ang'onoang'ono komanso osiyanasiyana a SMT. Amagwiritsidwa ntchito kwambiri m'magawo ambiri monga magalimoto, makina, zamankhwala, matelefoni, ndi zomangamanga za IT. Ikhoza kukwaniritsa zosowa za mafakitale osiyanasiyana pa khalidwe, kudalirika kwa ndondomeko, komanso kuthamanga.
