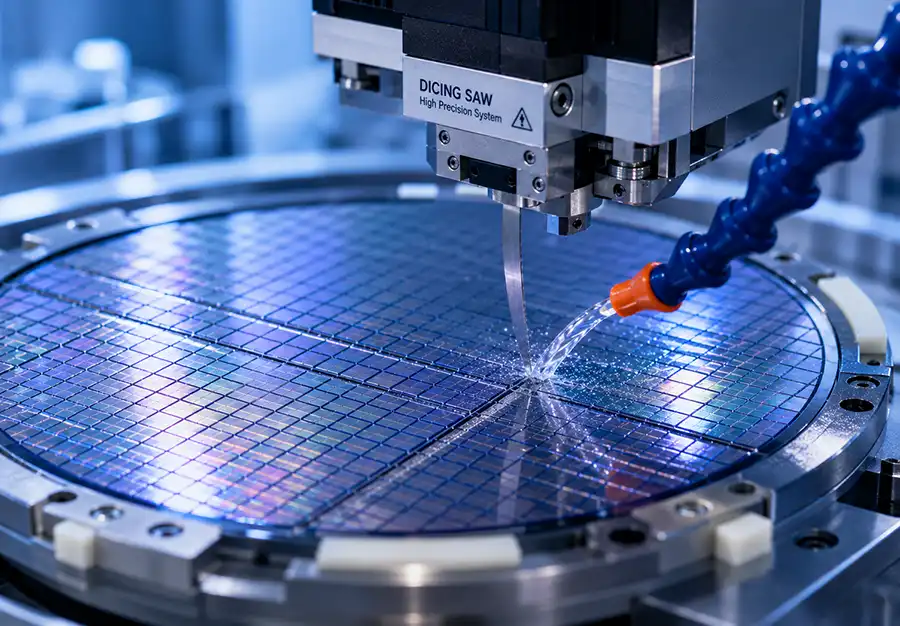

Keep the Cut Inside the Lane
Street width, die geometry and alignment marks determine how much positional margin is available during cutting.
Review vision recognition, axis accuracy, blade thickness and kerf-check capability on the actual machine.
Wafer Singulation Result Matching
Wafer Dicing Requirements and Equipment Selection
Start with the wafer, street width, cut depth, edge-quality target and post-dicing flow, then compare the dicing saw configuration the production process actually requires.
Core Cutting Brief
Define the Cut by What Must Survive
Wafer dicing is successful only when the separated die remains usable for inspection, pick-up and assembly. Start from the required result, then translate it into machine, blade, vision, workholding and cleaning requirements.
Protect the Die Edge and Backside
Thin, brittle or stress-sensitive wafers can show top-side chipping, backside chipping or micro-cracks even when the cut path is correctly positioned.
Match the spindle, blade route, feed window, mounting support and cooling condition to the wafer structure.Reach the Required Separation Depth
Full cut, half cut, grooving and step cut place different demands on cut-depth control, spindle arrangement and workpiece support.
Confirm whether the quoted unit can support the planned cut strategy rather than relying on the model family alone.Release Cleanly into the Next Step
Debris, residual water, tape condition and die movement after cutting affect inspection, expansion, pick-up and die bonding.
Check the cleaner, dryer, frame handling and post-dicing route included with the machine or production line.Current Equipment
Dicing Saw Equipment for Wafer Cut Requirements
Open the machine pages after defining the cut result. Then confirm the spindle, table, vision, software, handling modules and condition of the actual unit against the required street, depth, edge and handoff conditions.
NeonTech NDS-4200 dicing saw
The NeonTech NDS-4200 is a fully automated precision dicing saw designed for 8-inch (200mm) wafers. Featuring a robust g...
View Machine Details
DISCO Dicing Saw DAD324
DAD324 uses a high-performance MCU to improve software operation speed and operation response speed. The X, Y, and Z axe...
View Machine Details
disco wafer cutting machine DAD3241
DISCO-DAD3241 is a high-performance automatic slicer suitable for cutting needs of various materials with high producti...
View Machine Details
DISCO Fully Automatic Dicing Saw DFD6341
Equipment size: 1.180 meters wide, 1.080 meters deep, 1.820 meters high. Equipment weight: about 1.500 kilograms. ...
View Machine Details
No machines are currently displayed in this category. Send the wafer details, required cut result and preferred equipment condition so the available dicing saw supply can be checked.
A model page narrows the search, but it does not confirm the cut result. The spindle, chuck table, vision, cleaner, software, accessories and available inspection evidence still need to be checked on the specific unit.
Machine Requirement
Turn the Cut Result into Equipment Requirements
The objective is not to create a long process specification. Three groups of information are usually enough to narrow the work area, cutting system and production configuration that deserve further review.
Wafer, Frame and Tape
Share the wafer diameter, thickness, material, frame format and tape condition. These details affect the chuck, vacuum, loader, cut depth and support needed during separation.
Street, Die and Edge Target
Provide the street width, die size, full-cut or partial-cut requirement and the edge condition that must be protected. This narrows the blade, spindle, vision and inspection direction.
Output, Cleaning and Pick-Up
Expected volume, product mix, cleaning needs and the next operation help determine automation, single- or dual-spindle value, cleaner integration and frame handling.
Adjacent Equipment
Keep the Dicing Step Connected
Wafer support before cutting and residue control after cutting can change the final die condition. Use these published pages when the matching task extends beyond the saw itself.
Wafer Mounter
Review tape application, frame loading and thin-wafer support when mounting quality affects cutting stability.
Browse Wafer MountersDicing Saw Machines
Return to the main category when the task is broad model browsing or current machine availability.
Browse the Main CategoryWafer Cleaner
Review cleaning, rinse and drying equipment when debris or moisture can affect inspection and downstream assembly.
Browse Wafer CleanersNeed to compare different semiconductor device routes? Use the Semiconductor Dicing Equipment page when the decision starts with silicon, SiC, MEMS, optical devices, packages or panels rather than a specific wafer cut result.
Wafer Dicing Questions
Wafer Dicing Questions That Affect Machine Fit
These answers focus on cut-result requirements and equipment fit rather than repeating the complete wafer cutting process.
Is wafer dicing the same as wafer singulation?
The terms are often used for separating a processed wafer into individual dies. Wafer cutting and die singulation are also common related terms. The equipment decision still depends on material, wafer structure, cut method, quality target and production flow.
What information is most useful before selecting a dicing saw?
Start with wafer material, diameter, thickness, frame and tape format, street width, die size, cut depth, edge-quality target, expected output and the required post-dicing handoff.
Can the same saw run full cut, half cut and step cut?
A platform may support more than one cut strategy, but the specific machine still needs the correct spindle arrangement, axes, depth-control functions, blade system, software and workholding configuration.
What should be checked on a used wafer dicing machine?
Confirm the serial-numbered unit, spindle and table condition, vision and alignment, software, loader, cleaner, accessories, utilities, alarm status and the inspection or test evidence available for that machine.
Turn Your Cut Requirements into a Dicing Saw Shortlist
Share the wafer material, diameter, thickness, street width, die size, cut type, edge-quality target, frame format and expected output. We will compare the available machines against that cut result and show which spindle, table, vision, cleaning and handling points still need confirmation.
