Individual Equipment Record

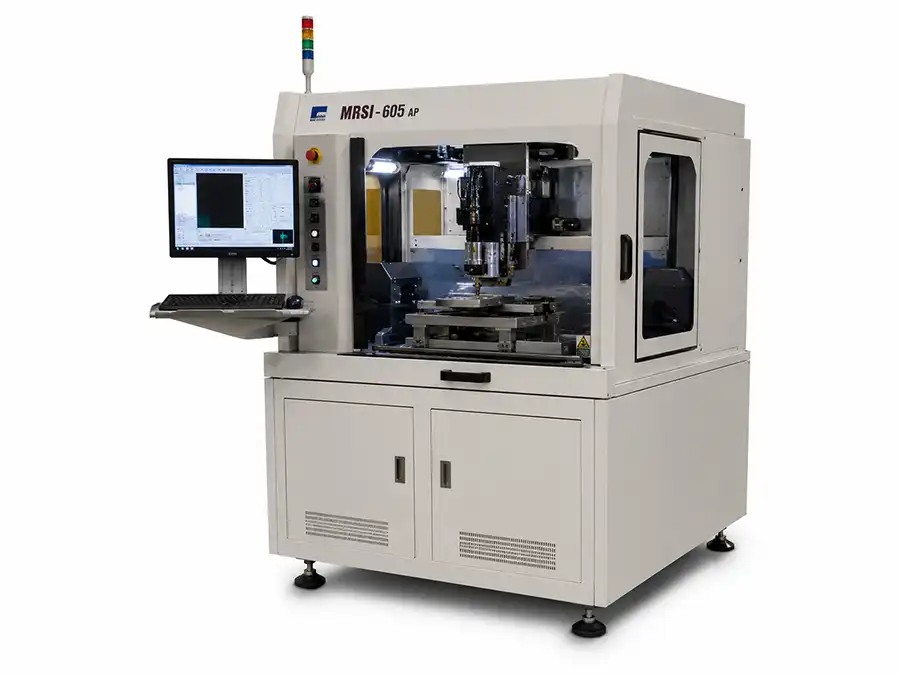

MRSI-605 Advanced Packaging Die Bonder
Explore used MRSI-605 die bonders for advanced packaging, epoxy, eutectic and flip-chip applications. Review configuration, condition, tooling and support.
Used MRSI Die Bonder
Used MRSI-605 Die Bonder
Choose the machine around the assembly process—not the listing title alone.
Tell us what the product needs to be picked, aligned, dispensed, heated or bonded. We can then identify which modules, tooling, controls and software should be checked on an available MRSI-605.
Pick and Place
Dispense
Heated Bonding
Vision Alignment

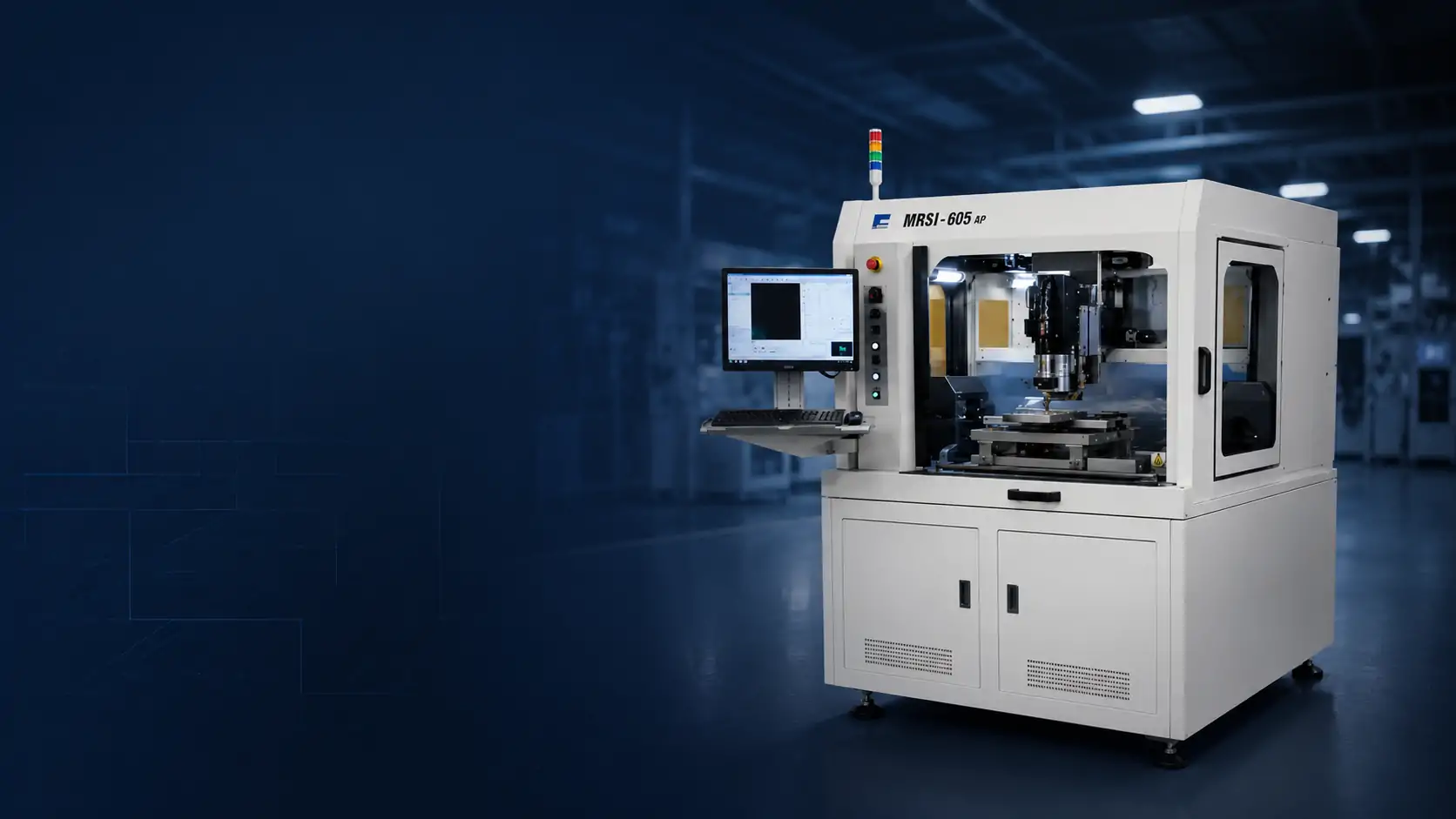

Reference image only. The process labels show areas that may need review and do not confirm that every function is installed on a current machine. Availability, identity and configuration must be checked against the individual equipment record.
Published Machine Records
Ask About MRSI-605 Availability
Used MRSI-605 Equipment
Begin with the actual machine record. Photographs, labels and published details provide a practical starting point for deciding which unit deserves a closer application review.
Use each published listing as a starting point. The next review confirms the formal model designation, installed modules, tooling, controller, software, condition and delivery scope of the physical machine.
Three Bonding Routes to Define Before Comparing Machines
Defining the application first makes it easier to focus on machines with the relevant heads, stages, material handling and control functions.
01
Epoxy Die Attach
For products that rely on adhesive placement, dispensing or dipping and controlled component attach.
What Your Application Needs
- Die and substrate or package format
- Adhesive, dispense or dipping method
- Placement accuracy, pressure and sequence
- Required fixtures and change parts
What to Confirm on the Machine
- Dispenser or dipping hardware
- Bond head and force-control direction
- Vision, lighting and alignment functions
- Tooling, workholders and software sequence
For an epoxy application, confirm the dispensing or dipping hardware, bond head, tooling, vision and software sequence on the offered machine.
02
Heated or Eutectic Bonding
For processes where stage temperature, atmosphere, scrub, pressure and timing become central to the machine build.
What Your Application Needs
- Material system and thermal direction
- Stage, head or combined heating need
- Atmosphere, scrub and dwell requirements
- Package, carrier and product flow
What to Confirm on the Machine
- Installed heated stage and controls
- Bond head, scrub and gas hardware
- Thermal tooling and product fixtures
- Controller, recipes and process records
For a heated or eutectic application, confirm the stage, thermal controls, scrub or gas hardware, tooling and available process records on the offered machine.
03
Flip-Chip or Orientation-Sensitive Assembly
For processes that depend on die orientation, flipping, alignment strategy and the correct handling sequence.
What Your Application Needs
- Interconnect or bonding direction
- Die orientation and flip requirement
- Alignment features and target accuracy
- Wafer, pack, carrier or tray input
What to Confirm on the Machine
- Flip and orientation hardware
- Vision cameras, optics and lighting
- Material stations and product handling
- Tooling, control software and machine data
For a flip-chip or orientation-sensitive application, confirm the flip hardware, vision path, material handling, tooling and control sequence on the offered machine.
These process routes describe application directions found in historical MRSI-605 builds. They are not a standard configuration shared by every machine; the installed hardware and software define the candidate unit.
Machine Identity
Use the model plate, serial number, photographs and equipment records to identify the physical unit and establish whether it is documented as MRSI-605 AP, shortened MRSI-605, Newport MRSI-605 or another legacy build.
Bond Head and Tooling
Review the installed head, tool positions, force-control hardware, collets, needles, fixtures and product-specific change parts. Any missing tooling should be identified early because it may add sourcing, adaptation or process-qualification work.
Stage and Thermal Hardware
Confirm the stage, heater, temperature controls, scrub or atmosphere hardware relevant to the process. Match the installed thermal hardware to the actual temperature, atmosphere, scrub and tooling requirements of the application.
Material Presentation
Check the actual wafer, waffle pack, Gel-Pak, tray, feeder, shuttle or carrier arrangement. The material route should match the wafer, pack, tray, feeder, shuttle or carrier used by the product.
Vision and Controller
Document cameras, optics, lighting, controller hardware, drive condition and known faults. Vision and motion-control condition help determine whether the unit can be meaningfully powered on, aligned and evaluated.
Software and Recoverability
Confirm the computer, software version, login access, licenses, backups, recipes and machine data. The control environment should be reviewed together with the mechanical build because software, access and backups influence commissioning work.
MRSI-605 Historical Reference Snapshot
Use this compact reference for model identification and early screening. The physical build and current condition define the offered machine.
Names in RecordsMRSI-605 AP, MRSI-605 and Newport MRSI-605 may appear in secondary-market descriptions.
Process DirectionsEpoxy, eutectic and flip-chip work were associated with different application configurations.
Accuracy ContextHistorical documentation includes 8 μm and 10 μm positioning references in different application contexts.
Input FormatsWafer, waffle pack, Gel-Pak, tray or feeder-based handling depended on the installed setup.
Control SystemsVision, force feedback, tooling and software capability depended on the physical build and condition.
Application Review
Tell Us What the Product Needs
You do not need to decode every legacy option before contacting us. Begin with the product, bonding route and critical process requirements; we will organize the machine-level questions from there.
Product and MaterialDie, substrate, package, adhesive, solder or interconnect direction.
Process RouteEpoxy, heated or eutectic, flip-chip or another legacy sequence.
Input and HandlingWafer, pack, tray, feeder, carrier, fixture and product flow.
Critical RequirementsAccuracy, force, temperature, vision, tooling and software constraints.
Used MRSI-605 Equipment Questions
How can I verify whether a listing is an MRSI-605 AP?
Check the model plate, serial number, original machine records and photographs of the physical unit. Equipment listings may use MRSI-605, MRSI-605 AP or Newport MRSI-605, so the seller title alone is not enough for final identification.
Can every MRSI-605 perform epoxy, eutectic and flip-chip bonding?
No. Those process directions were associated with different historical configurations. The required heads, stages, dispensers, scrub systems, flip hardware, cameras, tooling and software must be checked on the actual machine.
What accuracy should be expected from a used MRSI-605?
Historical material may show positioning references around 8 to 10 μm in specific application contexts. Current machine performance should be evaluated from calibration, condition and agreed acceptance evidence for the candidate unit.
What information is enough to begin a process-fit review?
Start with the product, bonding method, material input, thermal and accuracy requirements, tooling need and any photographs or records from the existing or candidate machine. A complete configuration sheet is not required for the first discussion.
Narrow the MRSI-605 Search Around Your Application
Share the product, bonding route and critical requirements. We will use the available machine records to identify relevant units, configuration questions and the equipment scope worth pricing.
