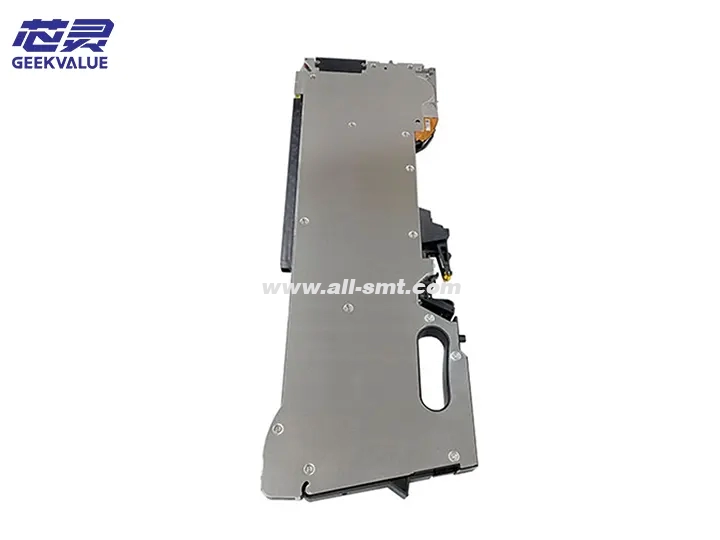

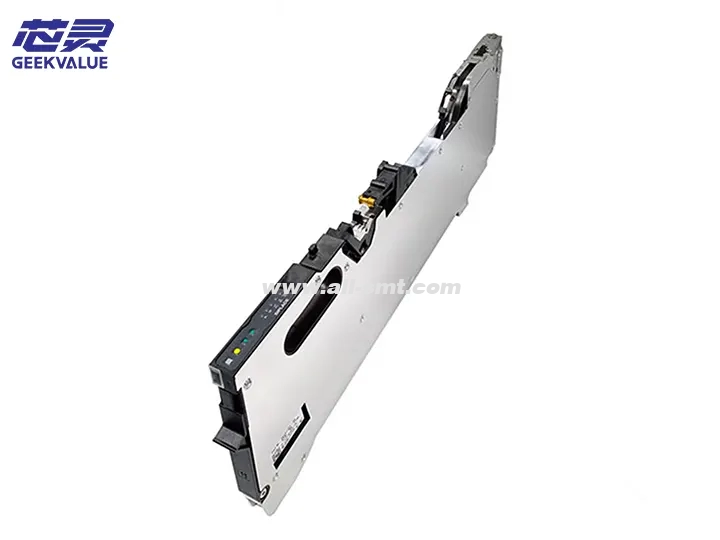

ASM Igaburira hamwe na sensor 12MM 00141391

Imashini ya ASM SMT 12MM hamwe na sensor ya federasiyo (icyitegererezo: 00141391) nigikoresho cyo kugaburira neza cyane cyagenewe imirongo ikora SMT, ikwiranye na 12mm yubugari bwa kaseti. Ibiryo bihuza tekinoroji igezweho kugirango yumve neza kandi itangwe neza nibitangwa, kandi ni ibikoresho byingenzi byingenzi mubikorwa bya elegitoroniki bigezweho.

2. Ibyiza byibicuruzwa

Kugaburira cyane-kugaburira: kwemeza imiterere yuburyo bwububiko kugirango harebwe intambwe yo kugaburira neza buri gihe, kandi ikosa rigenzurwa muri ± 0.05mm

Sisitemu yubwenge yubwenge: yubatswe-murwego rwo hejuru-sensibilité sensor, igihe-nyacyo Kugenzura imiterere ya kaseti hamwe nibice bigize

Ubwuzuzanye bwagutse: kumenyera imashini zitandukanye za ASM imashini za SMT, nka ASM SIPLACE X ikurikirana, D D, nibindi.

Kuramba gukomeye: ibice byingenzi bikozwe mubikoresho bidashobora kwihanganira kwambara, hamwe nubuzima bwa serivisi inshuro zirenga miliyoni 5

Igishushanyo cyihuse cyo guhindura ibintu: uburyo bwa kimuntu bwo gukosora umukandara, kugabanya igihe cyo guhindura ibintu

Kuzigama ingufu no kurengera ibidukikije: gushushanya ingufu nke, kuzigama ingufu zirenga 30% ugereranije nibiryo gakondo

III. Ibiranga tekinike

Imiterere ya mashini

Igishushanyo mbonera, ubunini ni 150mm × 45mm × 60mm

Uburyo bubiri bwo kugaburira gari ya moshi kugirango ukore neza umukandara wibikoresho

Sisitemu yo kohereza ibikoresho neza, igipimo cyo kohereza 16: 1

Igikoresho gishobora gukanda ibikoresho, bikwiranye nubunini butandukanye bwumukandara wibikoresho

Ibiranga sisitemu ya elegitoronike

Koresha ingoro ya salle ya salle, kutamenyekana

Igihe cyo gusubiza <1ms

Umuvuduko wakazi 24VDC ± 10%

Urwego rwo kurinda IP54, kurwanya anti-electronique

IV. Ihame ry'akazi

Gukwirakwiza amashanyarazi: Sisitemu nyamukuru yo kugenzura imashini ya SMT itwara moteri yintambwe imbere muri flair ikoresheje ikimenyetso cyamashanyarazi

Gutezimbere kaseti yibikoresho: Moteri itwara igipimo cyo kugaburira ikoresheje ibikoresho, kandi igatera imbere urwego rwibintu igihe cyose ruzengurutse inguni ihamye (mubisanzwe 7.5 °)

Kugaragaza umwanya: Sensor ikurikirana umwobo wa kaseti yibikoresho mugihe nyacyo kugirango yemeze ibiryo

Kugenzura ibitekerezo: Subiza ibimenyetso byerekana kuri sisitemu yo kugenzura imashini ya SMT kugirango ikore igenzura rifunze

Kugaragaza ibice: Iyo kaseti yibikoresho igeze kumwanya wabigenewe, icyuma cyambuye kizamura gato kaseti kugirango gipfundikire mumwanya ugaragara

V. Imikorere yibanze

Kugaburira neza: Gutanga ibintu bihamye ukurikije gahunda yashyizweho intambwe

Kubura impuruza yibikoresho: Kuburira hakiri kare mugihe umukandara wibikoresho ugiye gushira

Kugenzura imiterere y'umukandara: Menya niba umukandara wibikoresho wafashwe, uhindagurika cyangwa wacitse

Kugaragaza ibice bihari: Emeza niba hari ibice kuri buri kintu gifatika

Gukosora byikora: Indishyi zikora kubitandukanya bike

Kwandika amakuru: Andika amakuru yimikorere nkigihe cyo kugaburira namakuru yo gutabaza

VI. Kwirinda gukoresha

Ibisobanuro byihariye

Menya neza ko ibiryo hamwe nimashini ishyira imashini ihuye neza mbere yo gukomera imigozi ikosora

Reba niba umuhuza w'amashanyarazi wacometse ahantu kugirango wirinde guhuza

Gupakira umukandara

Reba niba umukandara wibikoresho ufite Deformation cyangwa ibyangiritse

Menya neza ko umukandara wibikoresho ugororotse kandi utagoretse muri gari ya moshi

Shiraho neza ikibanza cyumukandara wibikoresho byo kugenzura

Igenamiterere

Shiraho neza intera yo kugaburira ukurikije ukurikije ibice (mubisanzwe 4mm cyangwa 2mm)

Shiraho imbaraga zo kugaburira kugirango wirinde gukomera cyangwa kurekura cyane

Imikorere ya buri munsi

Irinde kwifashisha intoki ku gahato mugihe ibiryo bikora

Buri gihe usukure umukungugu n imyanda kumuhanda wumukandara

Kora ibikorwa bya "kugarura ibiryo" ubanza mugihe uhinduye umukandara wibikoresho

Ibidukikije bisabwa

Ubushyuhe bwo gukora 10-40 ℃, ubuhehere 30-70% RH

Irinde gukoresha ahantu h'umukungugu, amavuta cyangwa imbaraga za electromagnetic zibangamira ibidukikije

VII. Ubutumwa bwibibazo bisanzwe nibisubizo

Kode yamakosa Ibisobanuro birashoboka Impamvu ikemura

E001 Kugaburira igihe 1. Umukandara wibikoresho urafashe

2. Kunanirwa na moteri

3. Kunanirwa kwa Sensor 1. Reba inzira yumukandara

2. Gerageza amashanyarazi

3. Sukura cyangwa usimbuze sensor

E002 Nta gutabaza ibintu 1. Umukandara wibikoresho urakoreshwa

2. Urubanza rwa Sensor

3. Umurongo wikimenyetso urekuye 1. Simbuza umukandara mushya

2. Hindura ibyiyumvo bya sensor

3. Reba umurongo uhuza

E003 Kugaburira ntabwo biri mumwanya 1. Ikosa ryo gushiraho intambwe

2. Kurwanya imashini ni binini cyane

3. Imashanyarazi idahagije ya voltage 1. Reba ibipimo bya porogaramu

2. Gusiga amavuta ya gari ya moshi

3. Reba ingufu zisohoka

E004 Kunanirwa kwa Sensor 1. Kwanduza Sensor

2. Ibyangiritse byumuzunguruko

3. Kwivanga kw'ibimenyetso 1. Sukura idirishya rya sensor

2. Reba PCB

3. Shyiramo ingabo

E005 Ubushyuhe buri hejuru cyane 1. Gukomeza kurenza urugero

2. Gukwirakwiza ubushyuhe buke

3. Ubushyuhe bwibidukikije buri hejuru 1. Hagarika gukonja

2. Sukura umwobo wo gukwirakwiza ubushyuhe

8. Uburyo bwo gufata neza

Kubungabunga buri munsi

Isuku

Ihanagura ubuso bwibiryo ukoresheje umwenda utagira ivumbi buri munsi

Kuraho umukungugu w'imbere ukoresheje imbunda yo mu kirere (igitutu <0.3MPa)

Sukura idirishya rya sensor ukoresheje inzoga

Gusiga amavuta no kuyitaho

Ongeramo amavuta yihariye (nka Kluber Isoflex NBU15) kumuyoboro wa gari ya moshi n'ibikoresho bya buri cyumweru

Reba uko imyenda igaburira buri kwezi

Igenzura rikomeye

Buri gihe ugenzure niba imigozi yose ikosora irekuye

Emeza ko abahuza bose bafite aho bahurira

Kubungabunga buri gihe (buri mezi 3 cyangwa 500.000 ibiryo)

Gusenya no gusukura uburyo bwimbere

Simbuza ibiryo byambarwa byambarwa hamwe nigitutu cyamasoko

Hindura imyanya ya sensor

Gupima moteri kugirango umenye imyambarire ya karubone

Kugenzura byimazeyo imiyoboro yumuzunguruko hamwe nibigize

9. Kubungabunga ibitekerezo

Uburyo bwo gusuzuma amakosa

Itegereze ibintu: andika amakuru yose yo gutabaza nibikorwa bidasanzwe

Igenzura ryibanze: ibibazo bigaragara nko gutanga amashanyarazi, guhuza insinga, gukanika imashini, nibindi.

Ikizamini cyimikorere: gerageza buri sisitemu nko kugaburira no kumva bitandukanye

Isesengura ryibipimo: genzura Shakisha uburyo mumibare yimikorere yamateka

Ikizamini cyo gusimbuza: kunyuramo-kugenzura hamwe nibice byiza bizwi

Gukemura ikibazo rusange

Kugaburira bidakwiye: reba umushoferi wa moteri, icyuho cyibikoresho, umukandara wibikoresho

Impuruza y'ibinyoma: hindura urwego rwa sensor, reba ingamba zo kurwanya interineti

Ijwi ridasanzwe: reba imyenda yambaye, ibikoresho bibi byo gushing cyangwa ibintu byamahanga

Nta gikorwa na kimwe: gupima amashanyarazi yatanzwe, reba fuse nibimenyetso nyamukuru byo kugenzura

Ingingo z'ingenzi zo kubungabunga byimbitse

Kubungabunga moteri: gusimbuza karuboni ya karubone, gutahura inzitizi (agaciro gasanzwe ni 5-10Ω)

Kubungabunga ibibaho byumuzunguruko: kwibanda kugenzura imbaraga za filteri ya capacitor hamwe na signal amplifier IC

Kugarura neza kwa mashini: koresha ibipimo byerekana kugirango uhindure neza ibiryo

X. Incamake y'ibikoresho bya tekiniki

Icyiciro cya Parameter Ibipimo byihariye

Ubugari bwakoreshwa mubugari bwa 12mm (bihuza na 8-12mm)

Kugaburira neza ± 0.05mm

Umuvuduko ntarengwa wo kugaburira inshuro 30 / isegonda

Umwanya wa 2/4 / 8mm birashoboka

Uburebure bwibigize ≤6mm

Umuvuduko wakazi 24VDC ± 10%

Gukoresha ingufu ≤15W

Uburemere nka 0.8kg

Ubuzima bwa serivisi times miliyoni 5

Isubiramo
