What is auto splicer machine?

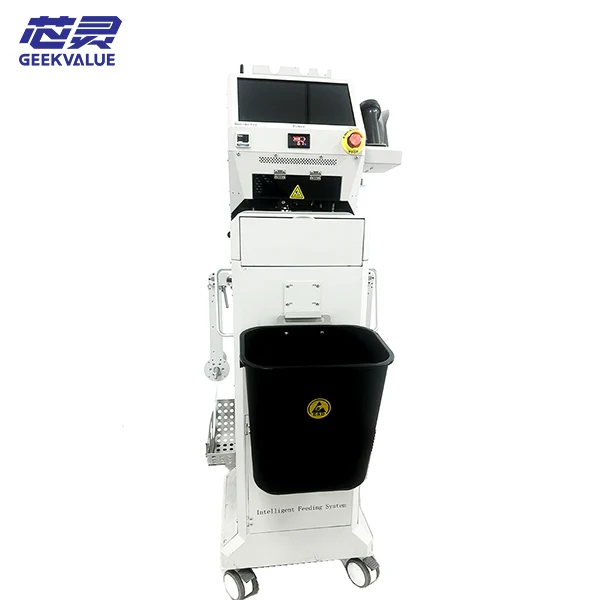

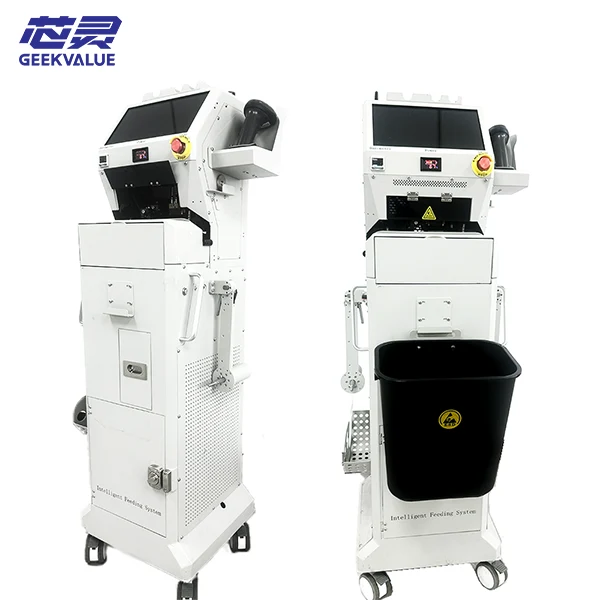

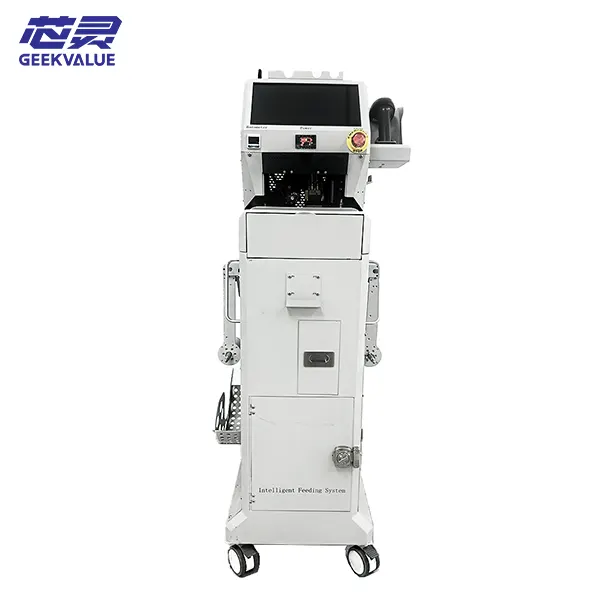

An SMT auto splicer machine—also known as an automatic splicer or automatic splicing machine—is designed to automatically join a new SMT component reel to the existing one without stopping the pick-and-place machine. This auto splicer machine ensures continuous production, minimizes downtime, and improves overall manufacturing efficiency, making it essential for high-volume SMT assembly lines, LED manufacturing, and electronic product production.
Key Features & Benefits of the SMT Automatic Splicer Machine
Automatic reel splicing without stopping SMT production.
Supports 8mm, 12mm, 16mm, and 24mm carrier tapes.
High-precision alignment to prevent feeding errors.
Reduces labor costs and eliminates unnecessary machine stoppages.
Easy-to-use interface for fast operation and training.
Compatible with major SMT brands (Panasonic, Yamaha, FUJI, JUKI, Samsung).
Durable design for long service life and stable performance.
Technical Specifications
| Model | Tape Width | Power Supply | Splicing Time | Dimensions (L×W×H) | Weight |
|---|---|---|---|---|---|
| AS-800 | 8–24mm | AC 220V / 50Hz | ≤ 5 seconds | 600×400×300mm | 15 kg |
| AS-1200 | 8–32mm | AC 220V / 50Hz | ≤ 4 seconds | 650×420×310mm | 17 kg |
How the Auto Splicing Machine Works
Load the new component reel into the SMT splicer.
The automatic splicer machine detects when the current reel is nearly finished.
The splicing mechanism automatically joins the old and new tape.
SMT production continues without interruption.
Applications of the SMT Splicer
PCB assembly lines
LED manufacturing
Automotive electronics
Communication equipment production
Consumer electronics
Why Choose Our Automatic Splicing Machine
| Feature | Manual Splicing | Auto Splicing Machine |
|---|---|---|
| Downtime per reel | 5–10 min | 0 min |
| Splicing accuracy | Medium | High |
| Labor requirement | High | Low |
| Production loss | High | Minimal |
After-Sales Service
1-year warranty with free technical support
On-site training and installation assistance
24/7 customer service response
Global shipping available
Faq
-
What is an automatic splicer used for in SMT production?
An automatic splicer is used to join SMT component tapes without stopping the pick-and-place machine, ensuring continuous production.
-
Can the SMT splicer work with different feeder brands?
Yes, it is compatible with most feeder brands, including Panasonic, Yamaha, FUJI, JUKI, and Samsung.
-
What tape widths can the auto splicer machine handle?
It supports 8mm, 12mm, 16mm, and 24mm carrier tapes.
-
Is special training needed to operate the automatic splicing machine?
No, the operation is simple, and basic training takes less than 1 hour.
